OBS workspace

The OBS workspace manages project resources used by OBS actions. The plugin declares the entity schemas; Core validates changes and the Editor holds pending forms.

Configure resources

Create or select an Asset, configure its declared type and fields, then Apply. Create a Slot and configure its relationship to the intended resource. Nested Bindings are edited within their Slot.

Review the Apply/Discard notice before navigating or duplicating a record. Search and type filters help locate resources; row actions target their own record.

Verify

Refresh the external resource list after changing OBS configuration. Apply the entity form, select it in an action, save the automation with File → Save (Ctrl+S), and Test.

Imported entities can depend on assets, bindings and external files. Review transfer analysis and conflict choices. Image preview does not imply full legacy media-preview support.

See Entities and OBS connection.

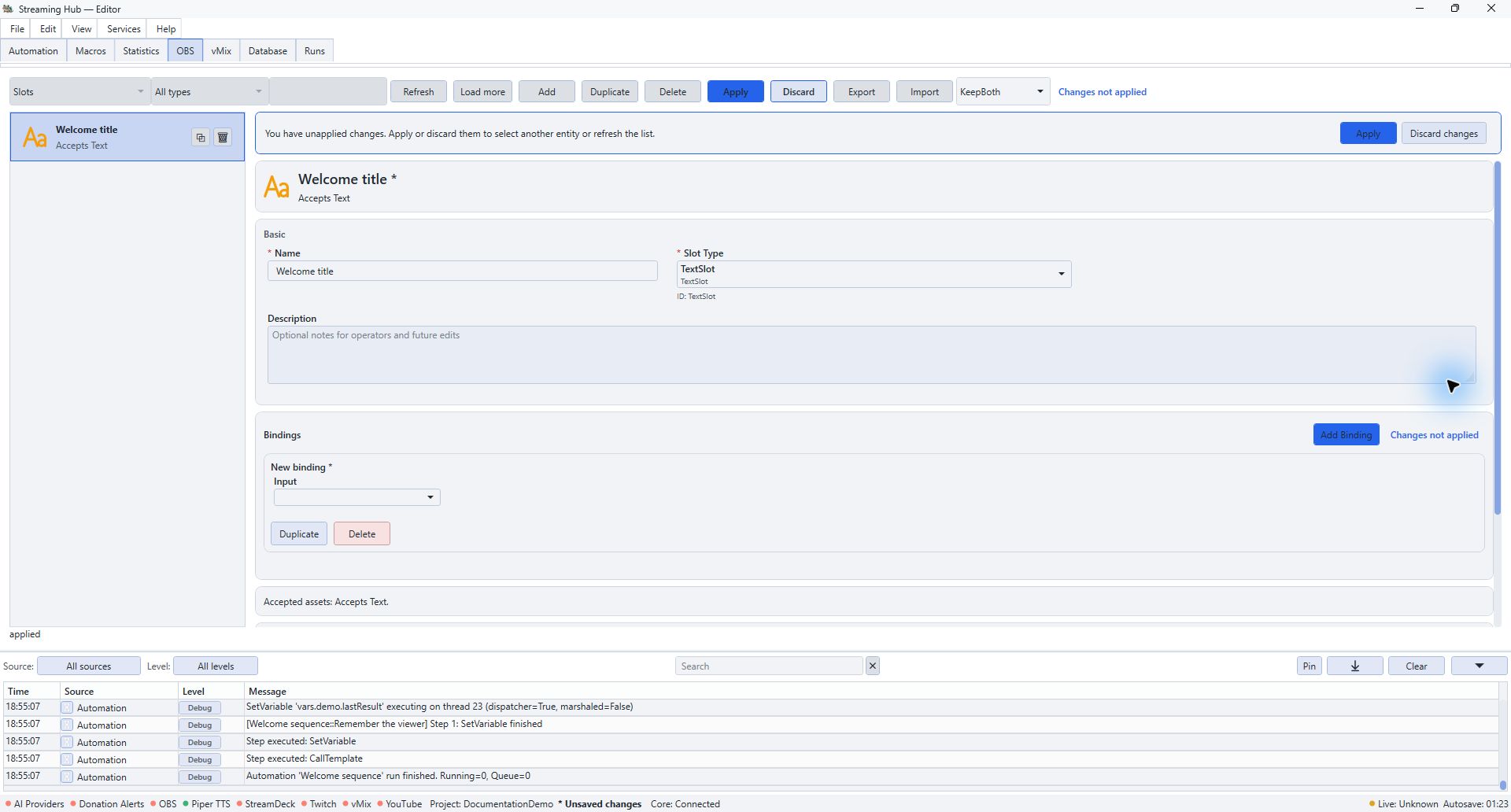

Binding draft example

Bindings are edited inside their Slot. This example shows an unapplied binding before choosing an OBS input; no OBS connection or live source change is demonstrated.
