Log panel
The log panel shows application, service, plugin and automation messages.
AlphaElements

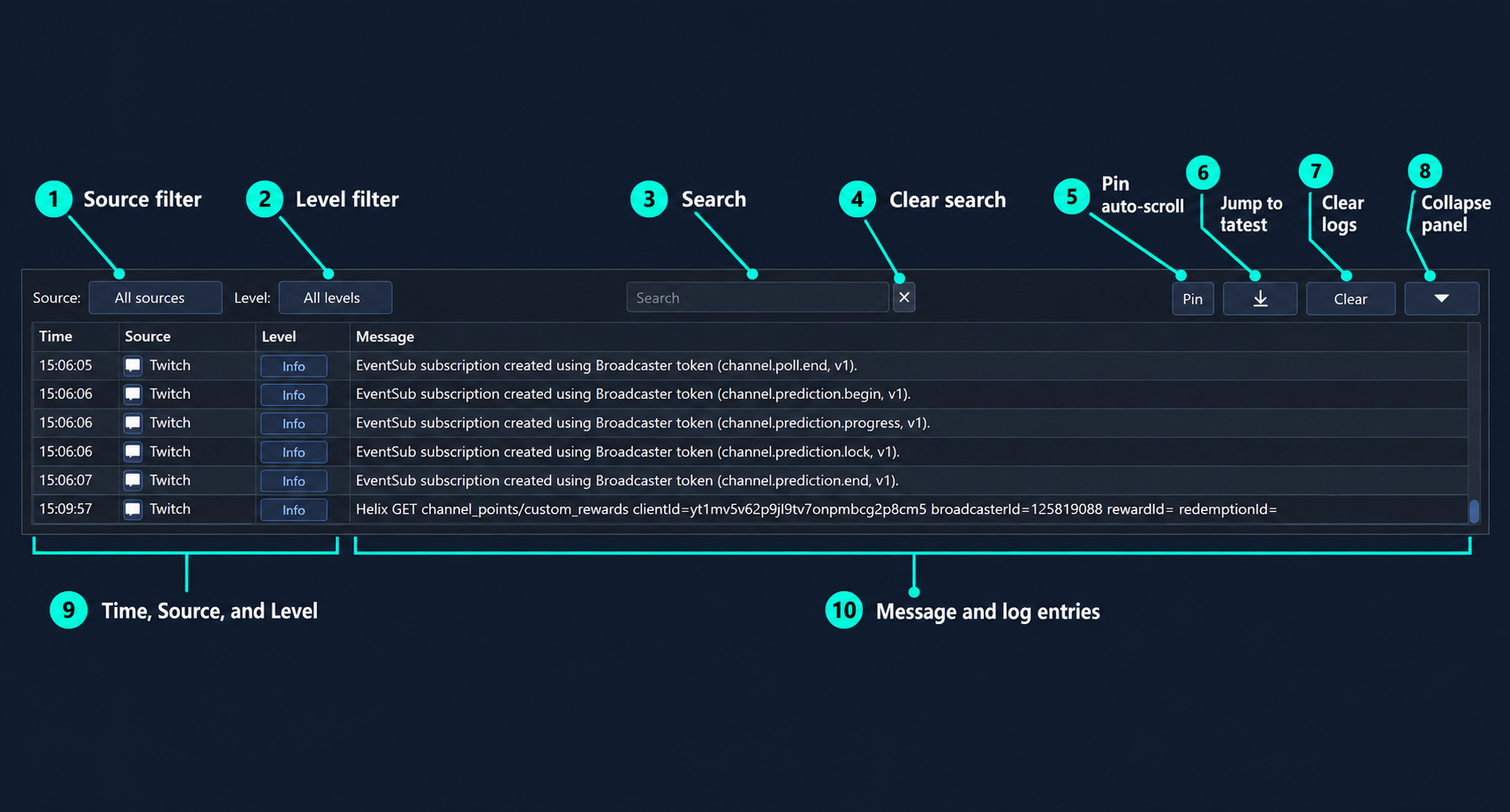

| Callout | Element | Purpose |
|---|---|---|
| 1 | Source filter | Shows all sources, one selected source or a selected set of sources. |
| 2 | Level filter | Limits the view by severity, such as Info, Warning, Error or Debug. |
| 3–4 | Search and clear search | Filters visible messages by text; the × button clears only the search query. |
| 5 | Pin | Pauses automatic scrolling while a log row is selected so the current evidence stays in view. |
| 6 | Jump to latest | Scrolls directly to the newest visible entry. |
| 7 | Clear logs | Removes the current in-memory log entries. It does not resolve the condition that produced them. |
| 8 | Collapse panel | Collapses the table to a compact summary with severity counts for the last minute. |
| 9–10 | Log entry | Records the time, source, severity level and message. Select rows and press Ctrl+C to copy them. |
Read and filter entries
Start with the source when a problem belongs to one connector or plugin, then narrow by severity and message text. Read adjacent entries when one operation produces several messages; an error often depends on the warning or connection event immediately before it.
Use with Runtime
Logs are best for chronological events and service messages. Use the Runtime panel when you need the captured context and step results of one automation run.
Before sharing
Copied log entries can contain user messages, account identifiers and local paths. Review the text and remove data that is not required to reproduce the problem.
