Interface overview
Identify the persistent areas of the Streaming Hub window and open the detailed guide for each workspace.

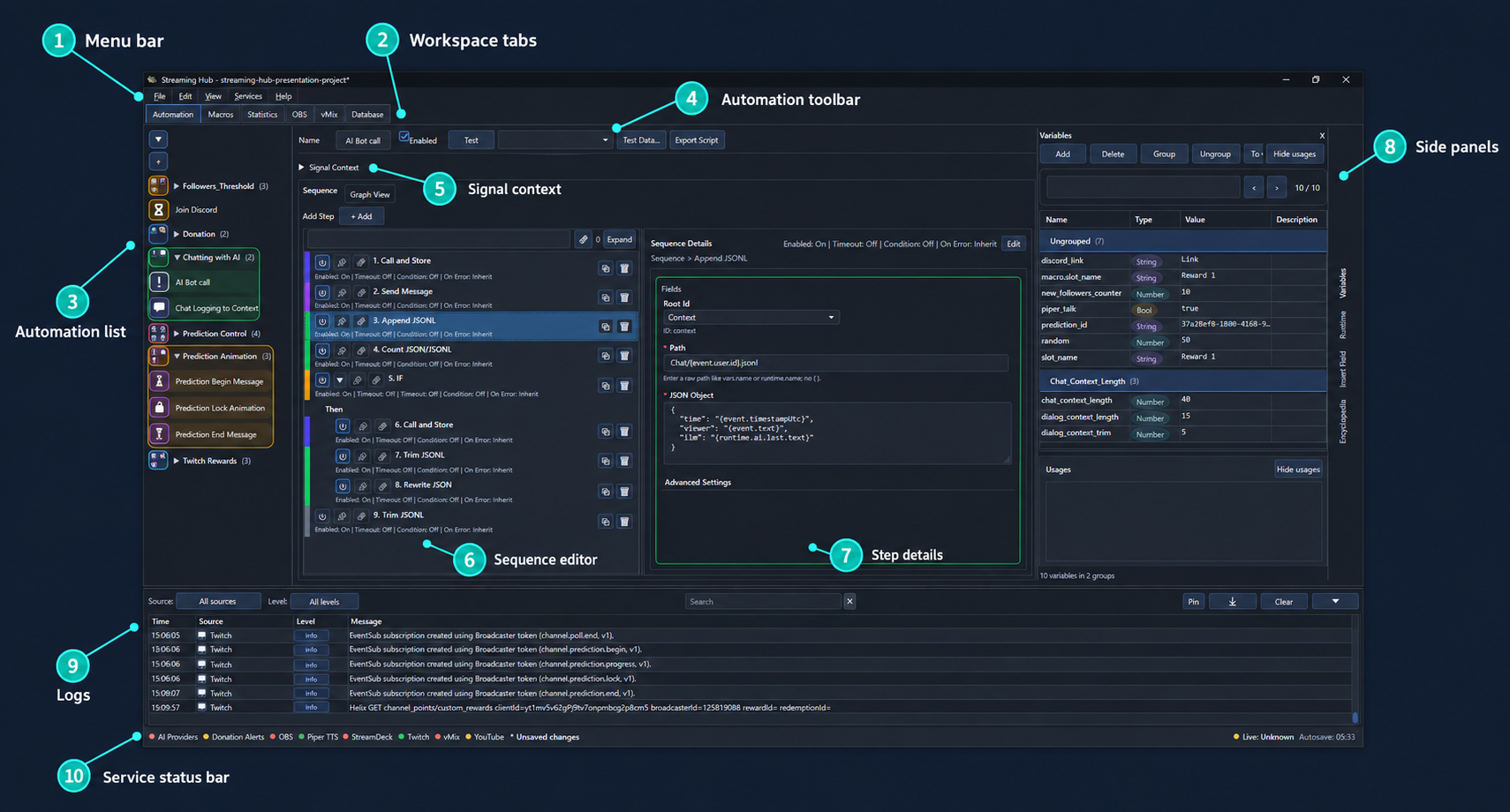

AlphaMain window areas
| Callout | Element | Purpose |
|---|---|---|
| 1 | Menu bar | Opens project, editing, view, service, settings and help commands. |
| 2 | Workspace tabs | Switches between the core workspaces and tabs contributed by installed plugins. |
| 3 | Automation list | Selects, groups and manages the automations in the current project. |
| 4 | Automation toolbar | Renames, enables, tests and exports the selected automation. |
| 5 | Signal Context | Configures the trigger and the execution policy for the selected automation. |
| 6 | Sequence editor | Shows the ordered and nested steps that form the automation script. |
| 7 | Step Details | Edits the fields and common execution settings of the selected step. |
| 8 | Side panels | Opens Variables, Runtime, Insert Field and Encyclopedia without leaving the workspace. |
| 9 | Logs | Shows chronological application, plugin, service and automation messages. |
| 10 | Service status bar | Summarizes plugin connections, unsaved changes, live state and autosave. |
Detailed workspace guides
Automation workspaceConnect a signal to the sequence that reacts to it.Macros workspaceCreate reusable sequences with explicit inputs and outputs.Statistics workspaceMaintain values that are updated by incoming signals.Database workspaceBrowse and edit files in configured project data roots.OBS workspaceManage OBS slots, bindings, assets and other plugin entities.
Persistent tools
The workspace guides concentrate on the selected tab. Use the separate references for the side panels, Log panel, status bar and keyboard shortcuts.
