OBS Studio

Control OBS scenes, sources and filters and react to OBS events.

Alpha

Verified withStreaming Hub: 0.1.2.1Plugins: OBS 1.1.0

Capabilities

Run actions against scenes, scene items, inputs, filters, recording, replay and streaming.
Receive supported OBS events, including scene, recording, replay and stream changes.
Manage reusable OBS slots, assets and bindings in the OBS workspace.

Signals6 items

Name	Description
OBS Recording Started	Trigger when OBS starts recording.
OBS Recording Stopped	Trigger when OBS stops recording.
OBS Replay Saved	Trigger after OBS saves a replay-buffer clip.
OBS Scene Changed	Trigger when the current OBS program scene changes.
OBS Stream Started	Trigger when OBS starts streaming.
OBS Stream Stopped	Trigger when OBS stops streaming.

Steps38 items

Name	Description
OBS: Audio Mute	Mute an OBS audio source or configured slot.
OBS: Audio Set Monitor Type	Set the monitoring mode for an OBS audio source.
OBS: Audio Set Sync Offset	Set the audio synchronization offset.
OBS: Audio Set Volume (dB)	Set audio volume in decibels.
OBS: Audio Set Volume (mul)	Set audio volume as a multiplier.
OBS: Audio Toggle Mute	Toggle the muted state of an audio source.
OBS: Audio Unmute	Unmute an OBS audio source or configured slot.
OBS: Filter Disable	Disable a filter on an OBS source.
OBS: Filter Enable	Enable a filter on an OBS source.
OBS: Filter Get Settings	Read the current settings of an OBS filter.
OBS: Filter Set Settings	Update the settings of an OBS filter.
OBS: Slot Restart Media	Restart media assigned to a configured OBS slot.
OBS: Slot Set Asset	Assign a reusable OBS asset to a configured slot.
OBS: Recording Get Status	Read the current OBS recording status.
OBS: Recording Get Time	Read the elapsed recording time.
OBS: Recording Start	Start recording in OBS.
OBS: Recording Stop	Stop recording in OBS.
OBS: Recording Toggle	Start or stop recording according to its current state.
OBS: Replay Get Last Saved	Read information about the last saved replay.
OBS: Replay Get Status	Read the current replay-buffer status.
OBS: Replay Save	Save the current replay buffer.
OBS: Replay Start Buffer	Start the OBS replay buffer.
OBS: Replay Stop Buffer	Stop the OBS replay buffer.
OBS: Get Current Program Scene	Read the current program scene.
OBS: Scene Transition	Switch to another scene with a transition.
OBS: Source Get Transform	Read a scene item's position, scale, rotation, crop and bounds.
OBS: Source Hide	Hide an OBS scene item.
OBS: Source Media Action	Run a supported playback action on a media source.
OBS: Source Refresh Browser	Refresh an OBS browser source.
OBS: Source Set Text	Update the text of a supported OBS source.
OBS: Source Set Transform	Set a scene item's position, scale, rotation, crop or bounds.
OBS: Source Show	Show an OBS scene item.
OBS: Source Toggle	Toggle the visibility of an OBS scene item.
OBS: Stream Get Status	Read the current OBS streaming status.
OBS: Stream Get Time	Read the elapsed streaming time.
OBS: Stream Start	Start streaming in OBS.
OBS: Stream Stop	Stop streaming in OBS.
OBS: Stream Toggle	Start or stop streaming according to its current state.

Integration signals can start automations. Integration actions are added as steps.

Requirements

OBS Studio with obs-websocket support enabled.
A reachable WebSocket address, port and password when authentication is enabled.

Connect

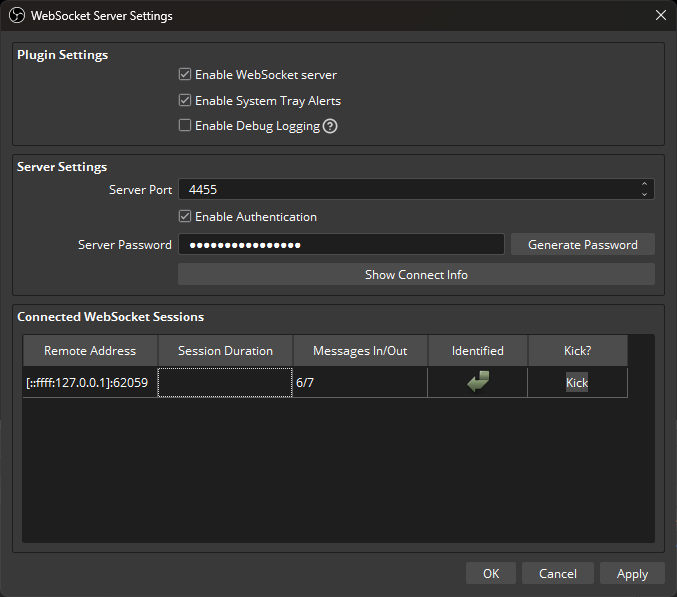

In OBS, open Tools → WebSocket Server Settings.
Enable Enable WebSocket server. Keep authentication enabled unless you have a specific local setup that does not need it, then select Apply.
Select Show Connect Info and keep the displayed server IP, port and password available.

In Streaming Hub, open Services → OBS, or double-click OBS in the status bar.
Enter the OBS server IP or host, port and password in the matching fields.
Select Apply or Save, then confirm that Diagnostics reports Connected: True.

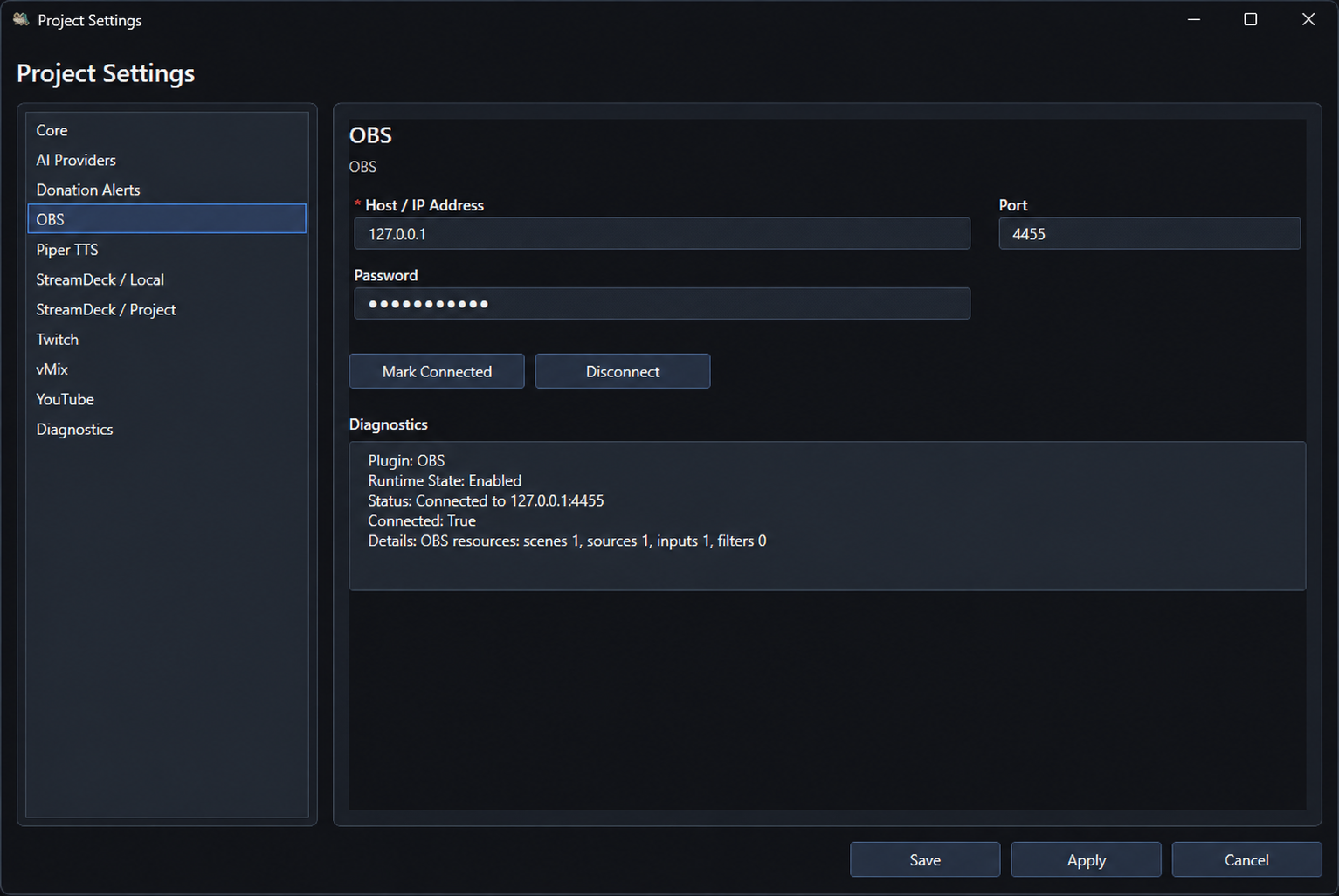

Streaming Hub OBS project settings with host, port, hidden password and connected diagnostics — Use the values from Show Connect Info. The documentation image hides the password deliberately.

Verify the connection

The OBS service indicator shows a connected state and Diagnostics reports Connected: True. Open the OBS workspace and select Refresh to confirm that current OBS resources can be read.

OBS entities and bindings

After connecting, open the OBS workspace to create reusable Slots and Assets. Bind each portable Slot to the matching scene, text source, media source, filter or other item in the connected OBS instance.

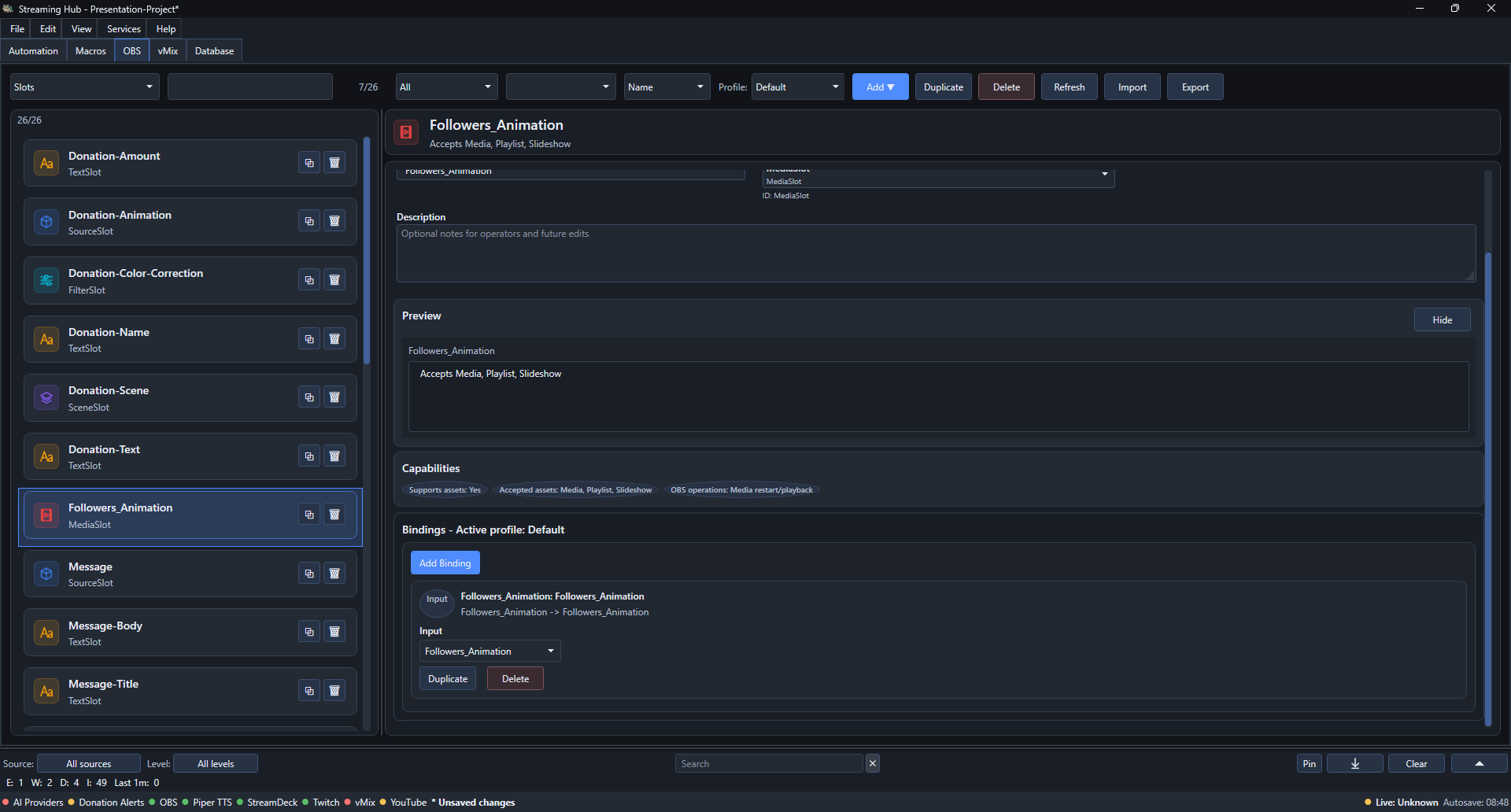

OBS workspace Slots view with a media slot, capabilities and a binding to an OBS input — Slots are reusable references. The selected media slot shows its accepted asset types and its binding in the active profile.

Use Assets for reusable images, media, playlists and other content that a Slot can reference. The image path in this example has been hidden for privacy.

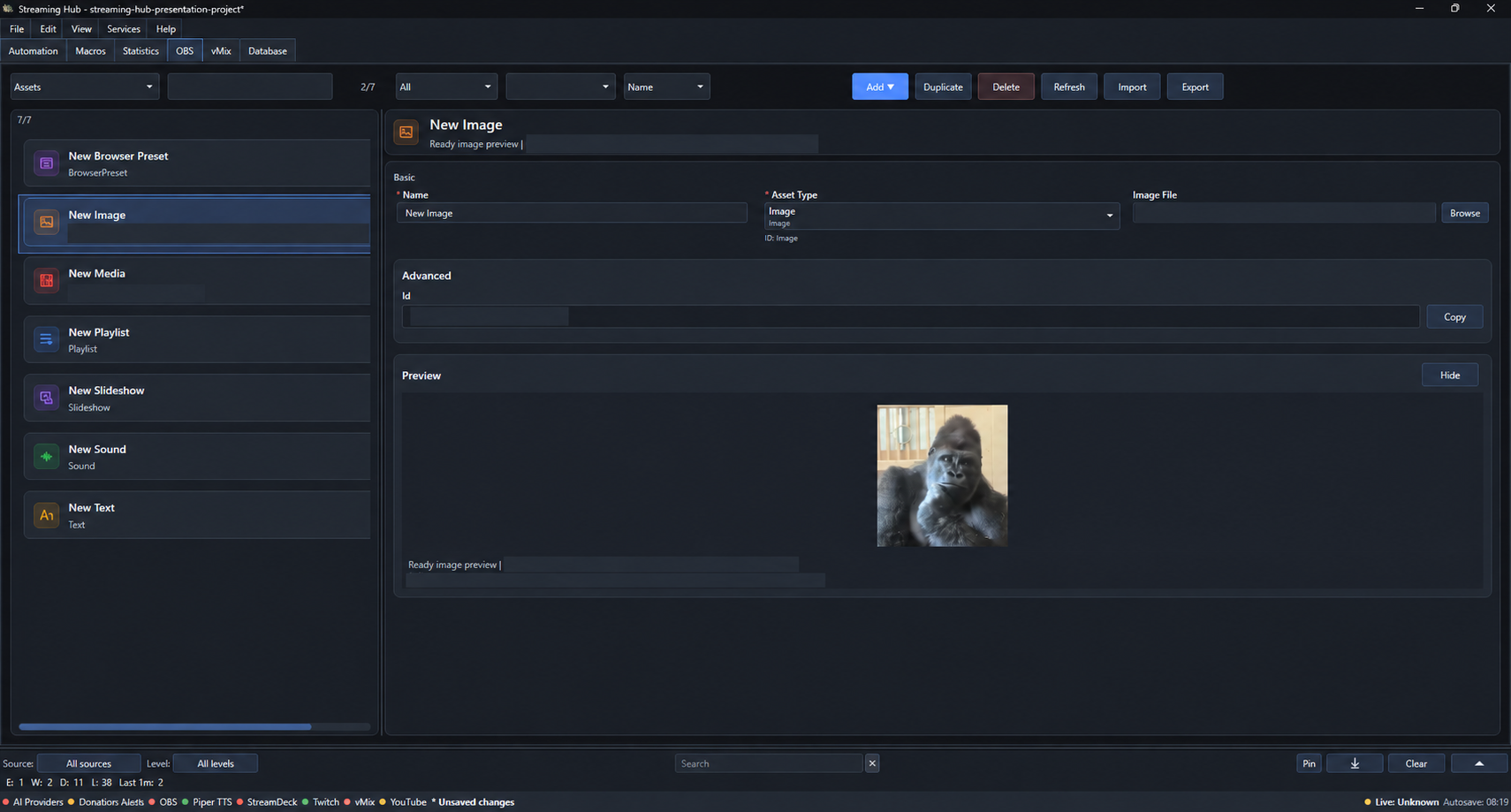

OBS workspace Assets view with a selected image asset and preview; local file paths hidden — Assets keep reusable content separate from the OBS resource or Slot that displays it. Local file paths are redacted.

See OBS workspace for the annotated interface and the difference between Slots and Assets.

Limitations

Actions depend on the names and identifiers available in the connected OBS instance. Renaming or removing OBS resources can invalidate saved references.

Troubleshooting

Check the service status and filter the Log panel by the integration source. Reopen the integration settings to check connection details, enabled options and required external-service permissions.
