vMix
Control vMix inputs and use vMix production state in Streaming Hub.
AlphaCapabilities
- Receive supported input, overlay, recording and streaming state changes.
- Control configured inputs, audio, overlays, transitions, recording, streaming and title fields.
- Refresh production state and send supported raw vMix functions.
Signals7 items
| Name | Description |
|---|---|
| vMix Active Input Changed | Trigger when the active vMix input changes. |
| vMix Preview Input Changed | Trigger when the preview input changes. |
| vMix Overlay Changed | Trigger when the state of a vMix overlay changes. |
| vMix Recording Started | Trigger when vMix starts recording. |
| vMix Recording Stopped | Trigger when vMix stops recording. |
| vMix Stream Started | Trigger when vMix starts streaming. |
| vMix Stream Stopped | Trigger when vMix stops streaming. |
Steps22 items
| Name | Description |
|---|---|
| vMix: Raw Function | Send a raw supported function to the vMix HTTP API. |
| vMix: Configured Input Set Asset | Assign a managed asset to a configured vMix input. |
| vMix: Configured Input Mute | Mute a configured vMix input. |
| vMix: Configured Input Set Audio Bus | Set the audio bus for a configured input. |
| vMix: Configured Input Set Volume | Set the audio volume of a configured input. |
| vMix: Configured Input Unmute | Unmute a configured vMix input. |
| vMix: Configured Input Pause | Pause playback on a configured input. |
| vMix: Configured Input Play | Start playback on a configured input. |
| vMix: Configured Input Restart | Restart playback on a configured input. |
| vMix: Input Set Preview | Place an input in the vMix Preview bus. |
| vMix: Overlay In | Show an input in a vMix overlay channel. |
| vMix: Overlay Out | Hide the current input from a vMix overlay channel. |
| vMix: Input Cut | Cut directly to another vMix input. |
| vMix: Input Fade | Fade to another vMix input. |
| vMix: Input Transition | Transition to another input using the selected effect. |
| vMix: Recording Start | Start recording in vMix. |
| vMix: Recording Stop | Stop recording in vMix. |
| vMix: State Refresh | Refresh the cached vMix production state. |
| vMix: Stream Start | Start streaming in vMix. |
| vMix: Stream Stop | Stop streaming in vMix. |
| vMix: Configured Input Set Title Image | Set an image field on a configured title input. |
| vMix: Configured Input Set Title Text | Set a text field on a configured title input. |
Integration signals can start automations. Integration actions are added as steps.
Requirements
- A running vMix instance with its Web Controller or HTTP API enabled.
- A reachable host and HTTP port. The standard local Web Controller address normally uses port
8088.
Connect
- Start vMix and open its settings.
- Enable the vMix Web Controller and note its HTTP port. No separate vMix screenshot is required for this step.

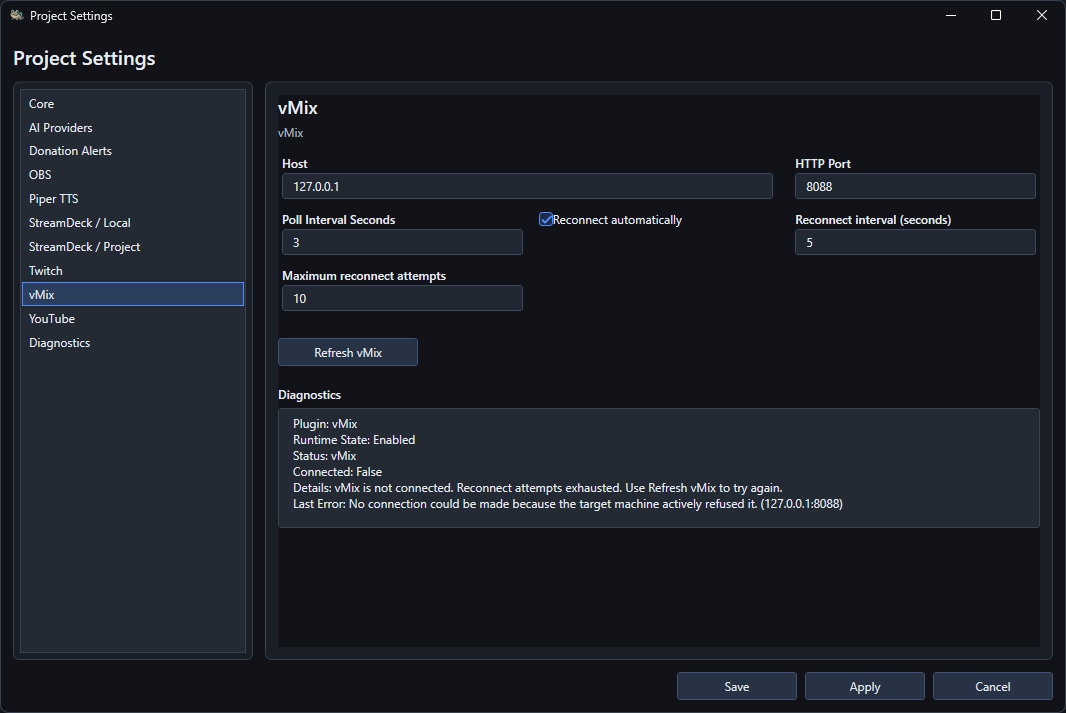

- In Streaming Hub, open Services → vMix.
- For vMix on the same computer, use host
127.0.0.1. Otherwise enter the reachable address of the vMix computer. - Enter the Web Controller HTTP port and choose a polling interval.
- Select Refresh vMix, then save the settings.
Verify the connection
Diagnostics reports a connected vMix instance and Refresh vMix returns current input metadata without an HTTP connection error.
Limitations
Saved references can become invalid when vMix inputs are removed, renumbered or renamed. Refresh the production state after changing the vMix project.
Troubleshooting
Check the service status and filter the Log panel by the integration source. Reopen the integration settings to check connection details, enabled options and required external-service permissions.
