Show Twitch prediction events in OBS

Result

This guide adds three OBS reactions to the prediction workflow from the previous guide:

1. Prediction Begin shows a five-second message card with the prediction title.
2. Prediction Lock shows the title, both outcomes, their final percentages, and two proportional color bars.
3. Prediction End reuses the message card to announce the result.

Before you start

Complete Control a Twitch prediction from Stream Deck first. This guide assumes you already know how to:

• connect Twitch and OBS;
• create automations and select signals;
• add and configure actions;
• create OBS Slots and bind them to OBS sources;
• inspect signal contracts in Encyclopedia.

The downloaded folder contains the three automations. OBS scenes, sources, Slots, and Bindings are project-specific and must be created separately.

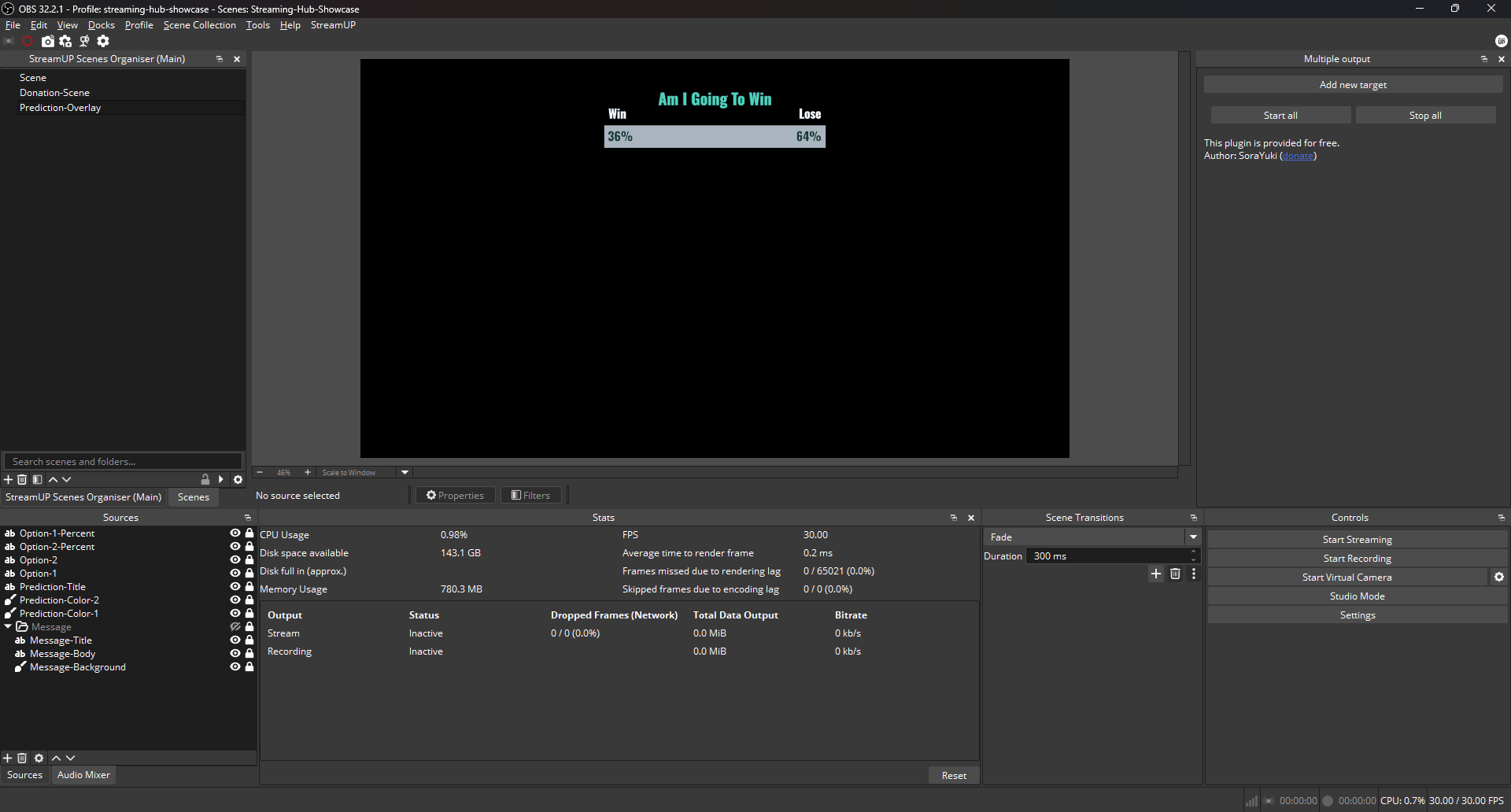

Step 1. Build the overlay scene in OBS

Create an OBS scene named:

Prediction-Overlay

Add Prediction-Overlay to each OBS scene where viewers should see prediction notifications. Place it above the scene's other sources so the overlay remains visible as the top layer.

Add the following sources:

• Prediction-Title
• Option-1
• Option-2
• Option-1-Percent
• Option-2-Percent
• Prediction-Color-1
• Prediction-Color-2
• a group named Message

Inside the Message group, add:

• Message-Title
• Message-Body
• Message-Background

Prediction-Color-1 and Prediction-Color-2 should begin at the same size. The recommended size used by this example is:

600 × 60 px

The 600 × 60 px dimensions are not required. Streaming Hub changes the bars proportionally through Scale X, not by assigning absolute pixel widths. You can use another initial size as long as both color sources have the same width and height.

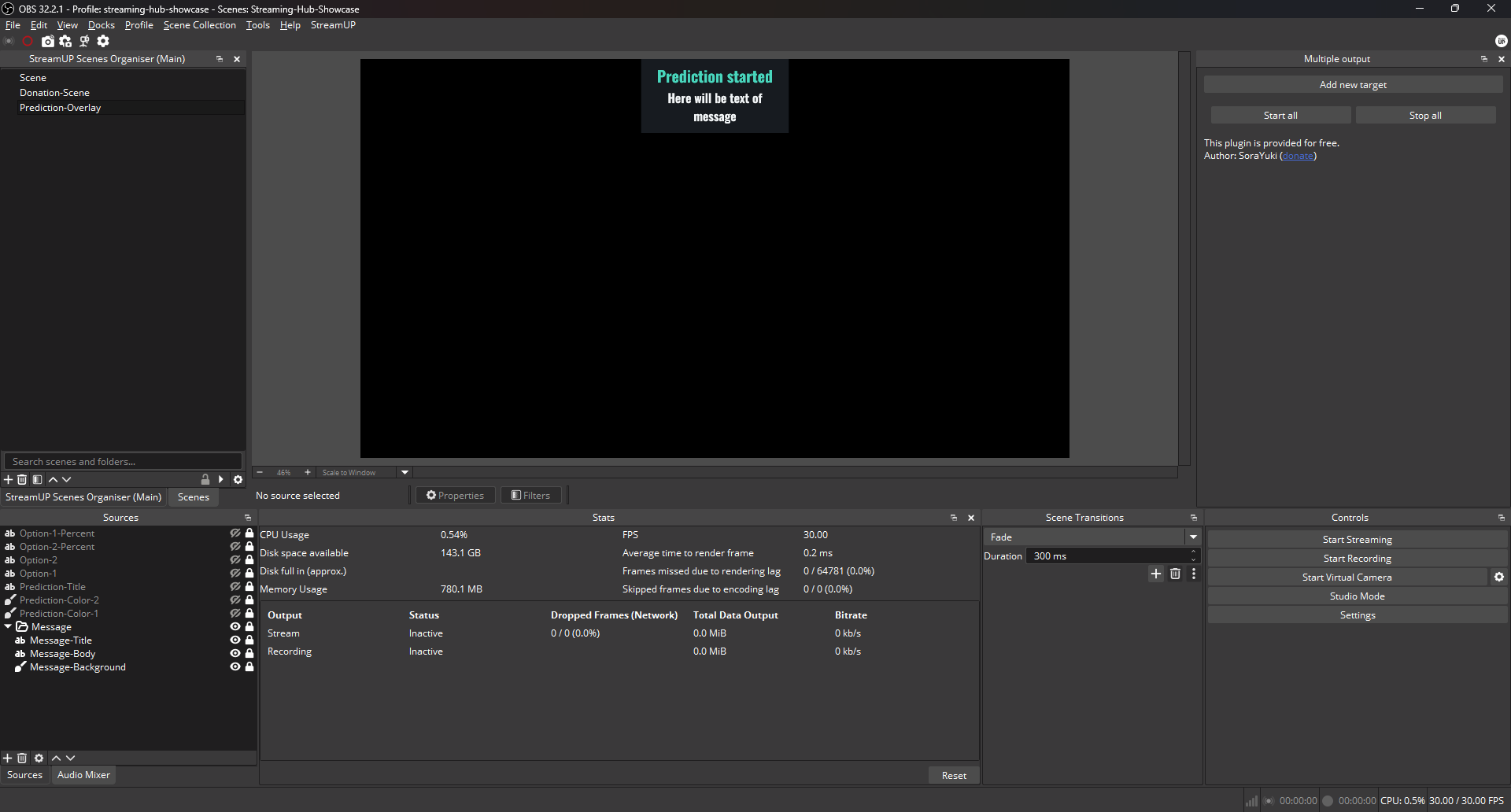

Step 2. Design the reusable message card

Use the Message group for both the beginning and ending announcements. Style its background and two text sources so the same card can display:

• a short status in Message-Title;
• the prediction title or result in Message-Body.

Keep the group hidden by default. The automations show it for five seconds and hide it again.

Step 3. Create the OBS Slots

In Streaming Hub, create seven Text Slots:

Create eight Source Slots:

Some OBS items need two Slots because the automations perform two different operations:

• a Text Slot changes the displayed text;
• a Source Slot shows or hides the item.

Bind every Slot to the OBS source with the matching name.

Step 4. Add the three Twitch signals

Create three automations:

The signal contracts provide the prediction title, outcomes, Channel Points, and result data under:

event.contract.twitch.prediction

Step 5. Announce the beginning of a prediction

In Prediction Begin Message, add:

1. OBS Source Set Text
2. OBS Source Set Text
3. OBS Source Show
4. Core Pause
5. OBS Source Hide

Configure them as follows:

When Twitch creates a prediction, OBS displays the reusable card with its title and hides it after five seconds.

Step 6. Populate the locked prediction

In Prediction Lock Animation, first update the text sources:

Add the first OBS Source Show action:

This makes the prediction title and outcome names visible before the percentage calculation and number animation begin. The percentage sources and color bars remain hidden until their final values have been prepared.

The example expects two displayed outcomes. Twitch may support more outcomes, but the OBS layout and the percentage calculation shown here contain two bars.

Step 7. Calculate the total Channel Points

Initialize the total before entering the loop:

Add Core For Each:

Inside the loop, add Math Number Operate:

Initializing the Runtime value is essential. Without the 0 step, the first addition contains an unresolved path and the later percentage values cannot be calculated.

Step 8. Calculate the percentages and bar scales

After the loop, add four Math Number Operate actions:

The first percentage is rounded to a whole number. The second is calculated as the remainder, so the displayed values always total 100%.

Scale X in OBS WebSocket is a multiplier, not a pixel width:

• 1.0 means the source's original width;
• 0.5 means half of its original width;
• 0.25 means one quarter of its original width.

Because both color sources begin at 600 px, percentages such as 68% and 32% use Scale X values 0.68 and 0.32.

Add two OBS Source Set Transform actions:

After both Set Transform actions, add the second OBS Source Show action:

This reveals the two percentage labels and their already-scaled color bars immediately before the changing-number animation starts.

Step 9. Animate the percentage numbers

Add Core Repeat:

Inside Repeat, add Math Random:

Then add OBS Source Set Text for both percentage Text Slots:

{vars.random}%

After Repeat, set the actual final values:

Repeat is not required for the calculation. It creates the fast-changing number effect shown in the video and demonstrates how the same action block can run several times.

Pause for 10 Seconds, then hide the prediction title, outcomes, percentages, and both color bars.

Step 10. Reuse the card when the prediction ends

Prediction End Message uses the same Message group as the beginning animation. The quickest way to create it is to copy the complete Prediction Begin Message automation, rename the copy, and change its signal to Twitch Prediction End.

The copied actions already contain the correct Message-Title and Message-Body Slots, Source Show, five-second Pause, and Source Hide. Add the result-selection actions before the two Source Set Text actions, then change only the displayed text.

First add Math Number Operate:

Then add Core For Each:

Inside For Each, add Core Set Variable:

The exported example uses this loop to select an outcome title and stores it in runtime.winner.

After the loop, adapt the two copied Source Set Text actions:

Keep the remaining copied actions:

The complete order is therefore:

1. Number Operate — initialize the comparison value.
2. For Each — inspect the prediction outcomes and store a title.
3. Source Set Text — update Message-Title.
4. Source Set Text — update Message-Body.
5. Source Show — reveal Message.
6. Pause — keep it visible for five seconds.
7. Source Hide — remove the card.

The configured body text in the export is:

We're got it! We did {runtime.winner}

Replace it with copy that matches your stream, for example:

The result is {runtime.winner}!

Verify the complete workflow

The fastest way to check the layout is to run all three automations manually, as shown in the video:

1. Test Prediction Begin Message and confirm the card appears for five seconds.
2. Test Prediction Lock Animation with a preset containing Channel Points for both outcomes.
3. Confirm that both displayed percentages total 100%.
4. Confirm that the two bars use the same original width and are scaled proportionally.
5. Confirm that the temporary random percentages are replaced by the final values.
6. Test Prediction End Message and confirm that it reuses the card.

After manual testing, create, lock, and resolve a real Twitch prediction. The corresponding Twitch signals should start the same automations without manual input.

If it does not work

• An automation does not start from Twitch: confirm that the selected signal is Begin, Lock, or End and reconnect the broadcaster account.
• OBS text does not update: verify the Text Slot Binding. A Source Slot can show an item but cannot replace its text.
• An item remains hidden: bind its separate Source Slot and include it in the matching Source Show action.
• The percentage calculation fails: initialize runtime.channelPointsTotal to 0 before For Each and confirm that every outcome contains channelPoints.
• Scale X does not resolve to a number: confirm that all preceding Number Operate actions completed and that Set Transform receives {runtime.width1} or {runtime.width2}.
• A bar becomes enormous: pass a multiplier such as 0.68, not a pixel width such as 408.
• The bars do not match the displayed percentages: ensure that both original OBS color sources have the same width and have not already been scaled differently.
• The resolved outcome is incorrect: use winningOutcomeId rather than inferring the winner from Channel Points or array order.

Adapt it

• Use Twitch Prediction Progress to update the percentages and bars in real time while entries are still open.
• Replace the random-number Repeat with a shorter or longer animation.
• Put animation durations and Repeat count in Number variables.
• Add more outcome text and bar sources for predictions with more than two outcomes.
• Reuse the For Each total calculation for Twitch Poll choices.
• Add sounds, filters, or transitions when a prediction starts, locks, or ends.
• Turn the message group into a shared OBS component used by polls, goals, raids, and donations.
